Data Specification & Collection (IRO-010 & TOP-003) on the NERC RC Exam: Test Tips and 5 Practice Questions

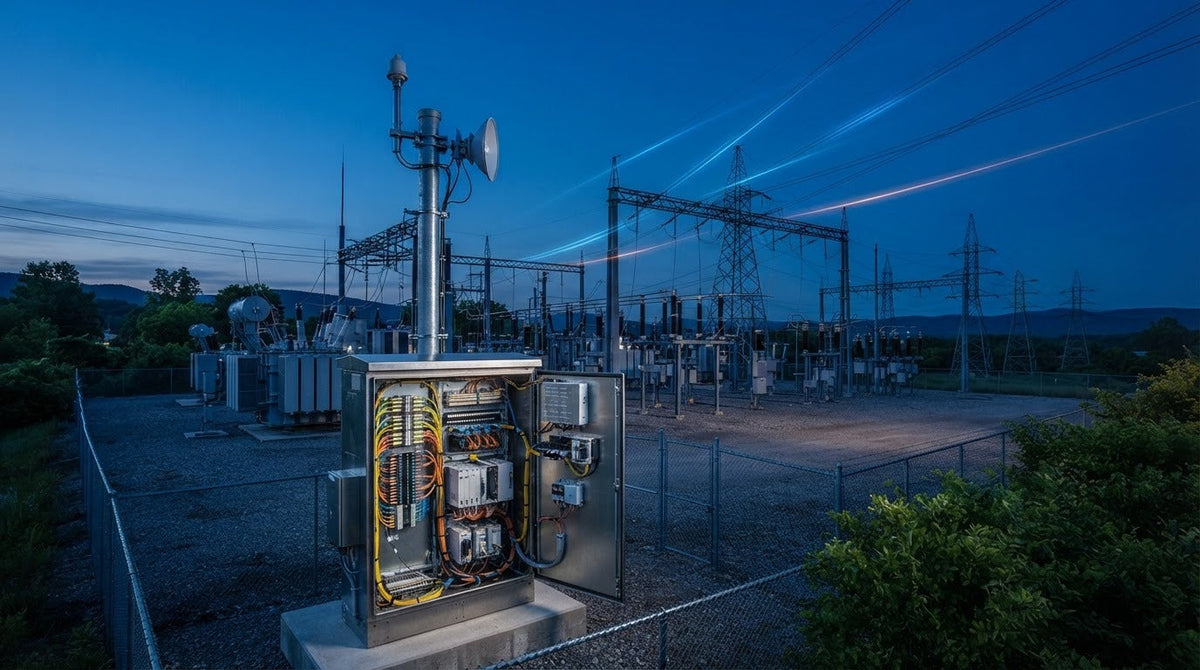

Substation at dusk with an open telemetry cabinet, antenna and microwave dish beside transformers and transmission towers

You can't assess what you can't see. Before an RC runs a single Real-time Assessment, someone has to define what data it needs and who owes it. That's the data specification, and the exam loves to test who writes it, who gets it, and who has to answer it.

Test Tips

  1. The RC writes the spec first. IRO-010 R1 puts a documented data specification on the Reliability Coordinator. If a question asks who defines the data the RC needs, it is the RC, not the TOP.
  2. Know what the data is for. The specification covers the data needed for Operational Planning Analyses, Real-time monitoring, and Real-time Assessments. Answers that mention billing or market settlement are distractors.
  3. Writing it isn't enough. IRO-010 R2 requires the RC to distribute the specification to the entities that have data required by it. A spec sitting in a binder fails the intent.
  4. Recipients have an obligation. Entities that receive the RC's specification must satisfy it (IRO-010 R3). Expect "who is responsible for providing the data" to point at the data owner, not the RC.
  5. RC and TOP both have specs. TOP-003 is the Transmission Operator's counterpart for the data it needs. Watch for choices that swap the RC and TOP roles.
  6. Don't invent timelines. If an option cites a specific hour count or data refresh rate you can't tie to the requirement, treat it with suspicion.

5 Practice Questions

Question 1

Under IRO-010, which entity is responsible for maintaining a documented specification for the data it needs to perform its analyses and monitoring?

  • A. Balancing Authority
  • B. Reliability Coordinator
  • C. Generator Owner
  • D. Distribution Provider

Question 2

The RC's data specification must cover data needed for which of the following?

  • A. Market settlement and billing only
  • B. Operational Planning Analyses, Real-time monitoring, and Real-time Assessments
  • C. Long-term resource adequacy studies only
  • D. Compliance audit evidence retention

Question 3

After documenting its data specification, what must the RC do under IRO-010 R2?

  • A. File it with FERC for approval
  • B. Keep it internal to the RC control room
  • C. Distribute it to the entities that have data required by the specification
  • D. Wait for a TOP to request it

Question 4

A Generator Operator receives the RC's data specification. What is its obligation?

  • A. Satisfy the obligations of the specification
  • B. Forward it to the Regional Entity and take no further action
  • C. Replace it with its own specification
  • D. Provide data only if the RC makes a formal Operating Instruction request

Question 5

Which standard contains the Transmission Operator's counterpart data specification requirements?

  • A. TOP-003
  • B. BAL-002
  • C. COM-002
  • D. FAC-008

Answer Key & Explanations

  1. B. IRO-010 R1 assigns the documented data specification to the Reliability Coordinator.
  2. B. The specification supports Operational Planning Analyses, Real-time monitoring, and Real-time Assessments. The other options describe unrelated functions.
  3. C. IRO-010 R2 requires distribution to the entities that have data required by the specification.
  4. A. IRO-010 R3 requires recipients of the specification to satisfy its obligations. It is not conditional on an Operating Instruction.
  5. A. TOP-003 covers the Transmission Operator's data specification. BAL-002 is contingency reserve, COM-002 is communications, and FAC-008 is facility ratings.

Always confirm current standard versions at nerc.com.

IRO-010 assigns the documented data specification to the RC, requires distribution to entities holding the data, and requires recipients to satisfy it. Carry that sequence into your review of planning, monitoring and assessments by joining the free 30-day RC study sprint: https://epgsolutions.services/pages/free-30-day-rc-study-sprint
